Clamp-On Ultrasonic Flow Meter: An Industry Guide to Real-Time Non-Contact Flow Measurement

The Challenge of Measuring Flow Accurately Across Industries

Accurate flow measurement is essential in industries such as biopharmaceutical manufacturing, food and beverage processing, chemical handling, medical device manufacturing, and advanced laboratory operations. Flow data is critical for dosing accuracy, batch consistency, process control, product quality, and regulatory performance. Yet in many systems, measuring flow reliably is not straightforward, especially when the product stream must remain sterile in a closed system.

Traditional inline flow meters can introduce tradeoffs. Clamp-on flow meters, by contrast, measure from outside the tubing without introducing an obstruction into the fluid path. Depending on the meter type, they may obstruct the flow path, create pressure drops, require pipe or tubing modifications, be product contact or a wetted surface which increases the risk of contamination, leakage, and maintenance. In single-use or hygienic processes, these drawbacks can be especially important because any added restriction or process contact can affect system performance, sterility, and product consistency.

For these reasons, non-contact/non-invasive flow measurement has become increasingly valuable. A clamp-on ultrasonic flow meter measures flow from outside the tubing, avoiding interference with the fluid path while helping preserve sterility, reduce contamination risk, and eliminate pressure loss caused by internal obstructions. This is where the ProA Flow ultrasonic flow sensor provides a strong advantage: it delivers real-time ultrasonic flow measurements without contacting the fluid or interrupting the process.

How the ProA Flow Clamp-On Ultrasonic Flow Meter Works

The ProA Flow clamp-on ultrasonic flow sensor measures liquid flow rate using the transit-time ultrasonic measurement principle. Because it mounts externally on flexible tubing, it measures flow without contacting the fluid or interrupting the process.

Measurement Principles: How the Transit-Time Method Works

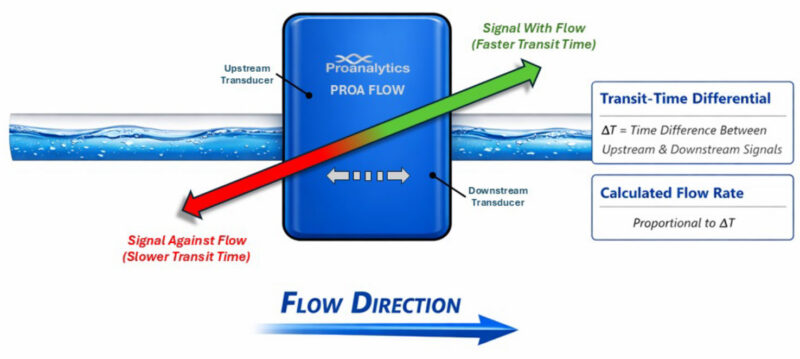

Two ultrasonic transducers are mounted on opposite sides of the tubing. Each transducer alternately sends and receives high-frequency sound waves through the tubing wall and the liquid. When the liquid is flowing, the signal traveling with the flow arrives slightly sooner than the signal traveling against the flow. This transit-time difference method uses the small difference in travel time between the two signals to determine flow velocity in the tube.

ProA Flow: Bidirectional Non-Contact Ultrasonic Flow Sensor

Key Benefits and Common Uses

By measuring this time difference precisely, the sensor calculates flow rate in real time. Its clamp-on design provides several advantages:

• No wetted surface/product contact, reducing contamination risk
• No pressure drops because the sensor does not obstruct the fluid path.
• Built for single-use assemblies, such as ProA Pure
• Supports real-time bi-directional flow monitoring to give total volume dispensed in forward and reverse fluid directions
• Integrated air bubble detection
• Closed-loop pump automation control
• Measurement accuracy of ±1% when calibrated

Real-time flow rate monitoring supports dosing accuracy, process control, and consistent fluid transfer across a wide range of applications.

Designed for Single‑Use and Flexible Manufacturing

Unlike traditional inline flow meters, the clamp-on design allows ProA Flow sensors to mount directly over flexible tubing and measure flow without process contact. This makes them ideally suited for:

• Single‑Use assemblies
• Sterile and closed system processing environments
• Hygienic applications where contamination risk is paramount
• Safer dispensing of hazardous or corrosive chemicals by keeping the sensor outside the fluid path, so the only wetted surface is the flexible tubing

The sensors are compatible with a wide range of flexible bioprocess tubing materials, including silicone, TPE, TPV, PVC, Viton, Tygon, and other flexible polymers. ProA Flow supports a wide array of tubing sizes from 5/32” O.D. to 1 1/2” O.D.

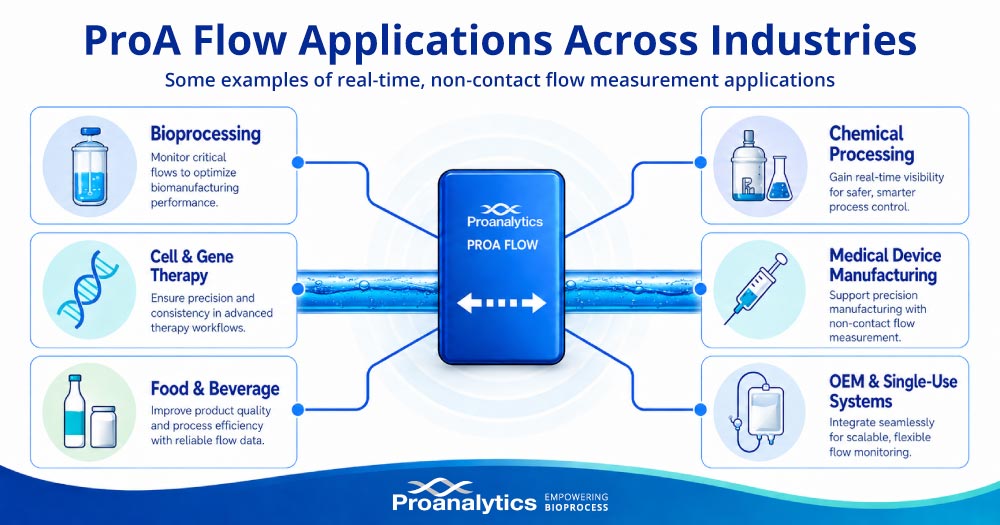

Industries and Applications

Biopharmaceutical Manufacturing and Bioprocessing

A clamp-on ultrasonic flow meter can support single-use upstream and downstream bioprocessing applications, including media transfer, buffer preparation, filtration, perfusion, and bulk filling operations. Real-time flow measurement enables Process Analytical Technology (PAT), critical process parameter (CPP) monitoring, and continuous manufacturing control to help improve product quality, consistency, and yield.

• Depth filtration
• TFF and perfusion systems
• Bioreactor feeding

Biotechnology and Cell Culture Production

ProA Flow provides accurate flow measurement for cell culture media delivery, buffer transfer, and perfusion systems, including ATF and TFF. It supports precise pump control, low-shear fluid handling, and real-time monitoring in single-use and perfusion bioreactor systems and flexible tubing assemblies, helping optimize performance in advanced biologics production.

• Cell culture media delivery
• ATF and TFF recirculation loops
• Seed train and production bioreactor feed

Cell and Gene Therapy Manufacturing

ProA Flow provides precise, real-time flow measurement for cell therapy and viral vector manufacturing in sterile closed-system environments. It supports single-use perfusion, harvest operations, and downstream purification workflows, helping maintain consistent flow control in high-value biologics production.

• Viral vector harvest lines
• Cell therapy media and buffer transfer
• Downstream purification feed control

Pharmaceutical R&D and Pilot‑Scale Manufacturing

ProA Flow provides scalable flow measurement for process development, clinical manufacturing, and technology transfer. ProA Flow can support both disposable and hybrid systems flow paths. It enables reliable inline analytics, real-time production monitoring, and batch consistency in GMP environments, helping streamline scale-up and support process validation.

• Process Development skids
• Clinical batch preparation
• Scale-up and Tech Transfer runs

Food and Beverage Processing

ProA Flow provides real-time ultrasonic flow measurement for food and beverage manufacturing applications, including ingredient dosing, liquid batching, filtration, and filling operations across dairy, beverage, and confectionery processing. It supports recipe control, batch consistency, and hygienic process control while helping manufacturers maintain compliance with food safety, sanitation, and CIP/SIP requirements.

• Accurate Ingredient Dosing
• Liquid Batching and Blending
• Filling and transfer operations

Chemical Processing and Specialty Chemicals

ProA Flow provides non-contact ultrasonic flow measurement for chemical processing and specialty chemical manufacturing. It supports chemical dosing, fluid transfer, and batch processing of corrosive, reactive, and high-value liquids. By eliminating wetted components, ProA Flow helps improve process control, reduce contamination risk, and lower maintenance requirements in demanding industrial environments.

• Chemical dosing skids
• Batch transfer lines
• Corrosive liquid handling

Buffer, Media, and Reagent Manufacturing

ProA Flow provides precise flow verification, dilution control, and volume measurement for buffer formulation, media preparation, and reagent manufacturing. The sensor supports automated pump control, filtration processes, and bulk liquid transfer. This helps maintain dosing accuracy, process consistency, and repeatability.

• Buffer formulation
• Media preparation
• Reagent dilution and dispensing

Medical Device Manufacturing

Medical device manufacturing often depends on accurate liquid handling in disposable assemblies, reagent delivery systems, diagnostic cartridge filling, and medical device skids. ProA Flow supports real-time, non-contact flow measurement on flexible tubing, helping manufacturers maintain sterile processes, improve dosing accuracy, and simplify integration into automated production equipment.

• Diagnostic cartridge filling
• Reagent delivery systems
• Disposable assembly fluid handling

Single‑Use System Integrators and OEM Equipment Builders

Single-use OEM equipment builders need flow sensing solutions that integrate easily into single-use systems (SUS) and disposable assemblies. ProA Flow supports non-invasive flow monitoring with analog communication and Modbus RTU over RS485 for real-time sensing, data integration, and automated control without adding product contact or compromising sterility. Optional accessories also support local display, PC connectivity, signal retransmission, and display of real-time flow rate and total flow.

• OEM process skids
• Single-use mixing and transfer systems
• Automated pump control modules

Conclusion: Why Clamp-On Ultrasonic Flow Meter Technology Fits Modern Process Applications

As manufacturers seek more accurate, hygienic, and efficient ways to monitor liquid movement, clamp-on ultrasonic flow meters are becoming an increasingly important solution for automated process control.

By combining non-contact ultrasonic flow measurement on flexible tubing with real-time monitoring, ProA Flow helps improve safety, reduce contamination risk, avoid pressure drop, maintain closed-system integrity, and support more consistent process control.

The system accommodates a broad range of applications and tubing sizes, including configurations up to 1 1/2″ OD. With proper flow calibration, the sensors can achieve measurement accuracy down to 1%.

Additional capabilities—including bidirectional sensing, total volume calculation, air bubble detection, and analog/digital communication via RS485—support integration into OEM skids and automated single-use systems.

These capabilities make ProA Flow a versatile option for bioprocessing, pharmaceutical and medical device manufacturing, food and beverage production, chemical dosing, and general laboratory operations.
