Sanitary Diaphragm Pump

Magma™ APS Gen2

Advanced Low-Shear Sanitary Diaphragm Pumping System for Bioprocessing

Engineered for Precision and Sterility

The CP Biotools Magma™ APS Gen2 is a scalable, low-shear sanitary diaphragm pump system designed for sterile fluid handling in biopharmaceutical applications. Supporting volumes from 100 mL to over 100 L, it is suitable for research, process development, and production environments.

Key Features

Low-Shear Fluid Handling
Diaphragm-based actuation minimizes mechanical stress, preserving shear-sensitive materials such as mammalian cells.
Sanitary, Sterile Design
USP Class VI platinum-cured silicone diaphragms with stainless steel or gamma-compatible plastic pump heads ensure sterility and compatibility with autoclaving or irradiation.
Smart-Stop™ & Quick-Stop™
Controlled shutdown modes purge or hold liquid, relieve pressure, and prevent air or fluid retention.
Integrated Safety Systems
Automatic alarms and shutdown protect against abnormal operating conditions.
Sensor & Control Integration
- Supports up to three single-use pressure sensors (inlet, outlet, filtrate)
- Automated feed pump activation via vessel weight control (RS232 scale input)
- Permeate pump integration with automated control
- Liquid ingress detector to prevent controller damage
Connectivity & Data Output
Ethernet interface for external monitoring and CPC connectors for process integration.

Applications

Bioreactor Perfusion
Reverse Cross Flow (RXF™) mode enhances membrane longevity and sterility for continuous culture.
Virus Production
Gentle, sterile fluid handling supports sensitive viral propagation.
Liquid Transfer & Mixing
Enables tubing-free movement and mixing without impellers.
Extended Filtration Runs
Dual-filter configurations enable seamless filter switching during long processes.
Multiplexing for R&D
Supports small-scale parallel experiments for efficient process optimization.

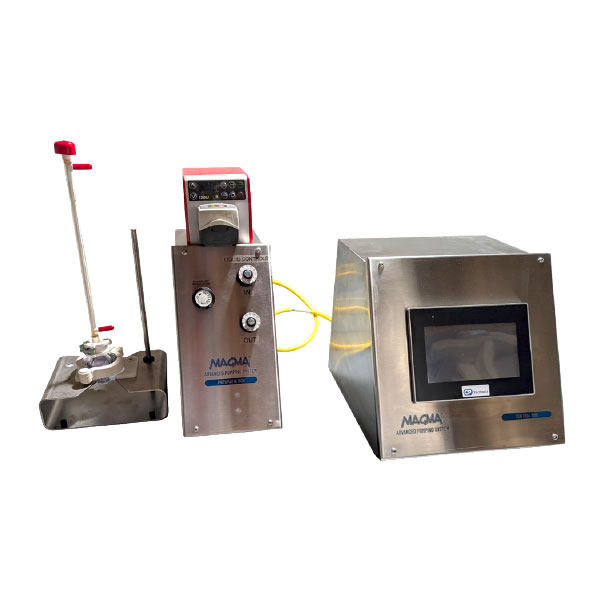

System Components

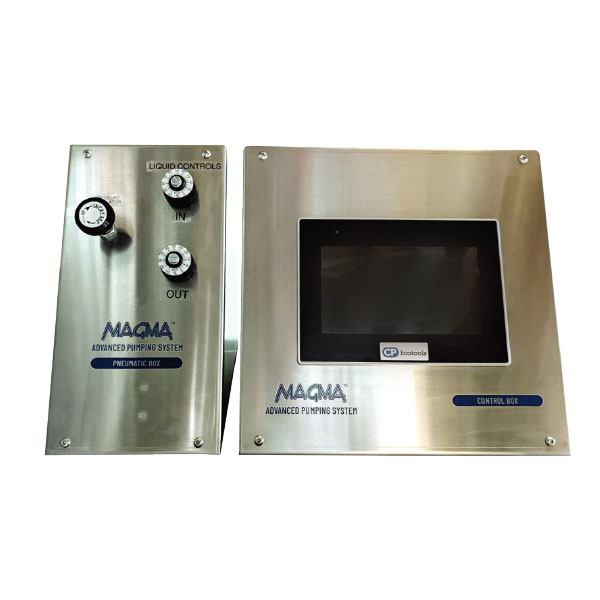

Pump Controller

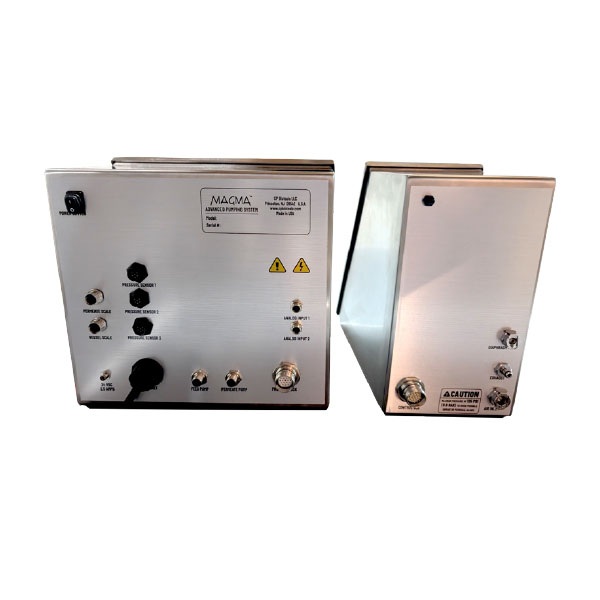

Stainless steel enclosure with touchscreen interface, Ethernet output, and RS232 scale input.
Pump Heads
Available in 316L stainless steel; polysulfone single-use heads coming soon.
Diaphragms
Molded platinum-cured silicone, steam-sterilizable, qualified for >1 million cycles.

Pump Models & Flow Rates

Model	Volume	Approx. Daily Flow	Flow Range (LPM)
MAPS-6	6 mL	~1 L/day	0.012 – 0.090
MAPS-20	20 mL	~5 L/day	0.040 – 0.300
MAPS-50	50 mL	~15 L/day	0.100 – 0.750
MAPS-180	180 mL	~50 L/day	0.360 – 2.700
MAPS-860	860 mL	~200 L/day	1.720 – 12.900
